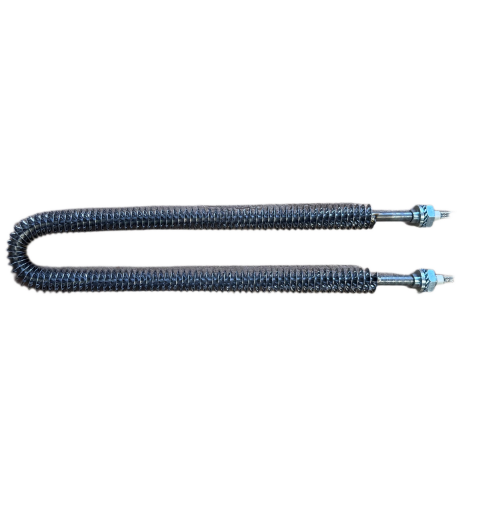

Heating element for Vents VUT 350 PE EC
In Stock
| Delivery Method | Delivery Time | Cost | |
|---|---|---|---|
|
Nova poshta
To a branch or by courier
|
1-5 days | According to the carrier's rates |
|
Pickup
From pickup points
|
1 day | Free of charge |
The warranty for electrical components and motors is *90 days upon presentation of a document confirming the purchase of the product.
The warranty for other spare parts is 14 days.
| Manufacturer | Vents |
| Country of manufacture | Ukraine |
| Current consumption, A | 6,8 |
| Supply voltage, V | 230 |
| Rated power, W | 1500 |
| Power frequency, Hz | 50 |
| Mass, kg | 0,3 |
| State | New |
| Warranty period, months | 1 |

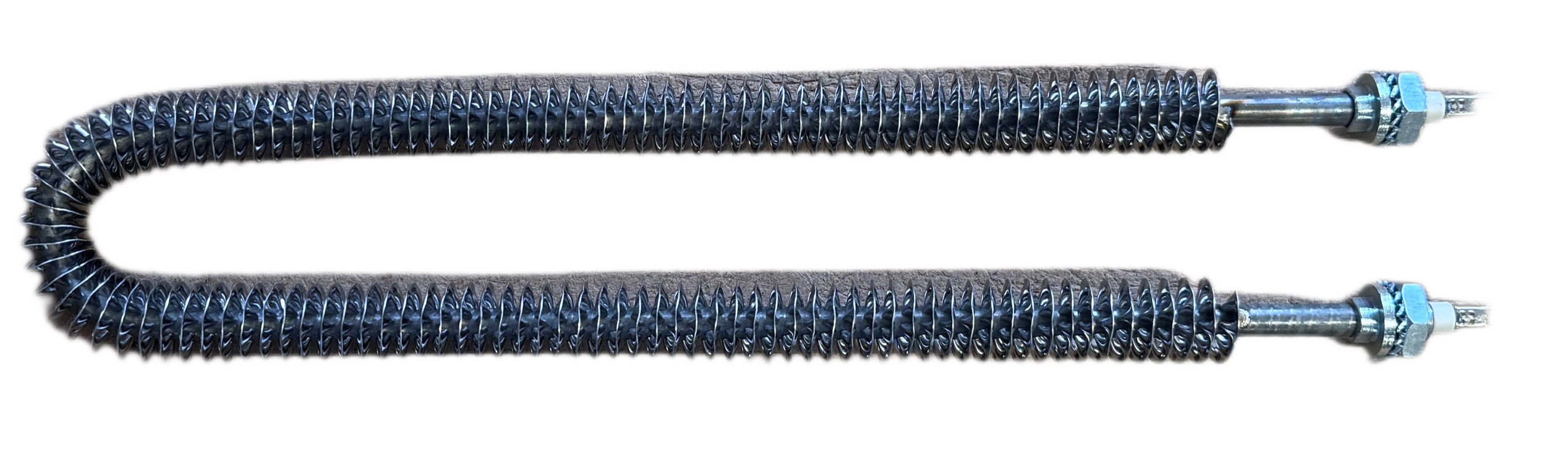

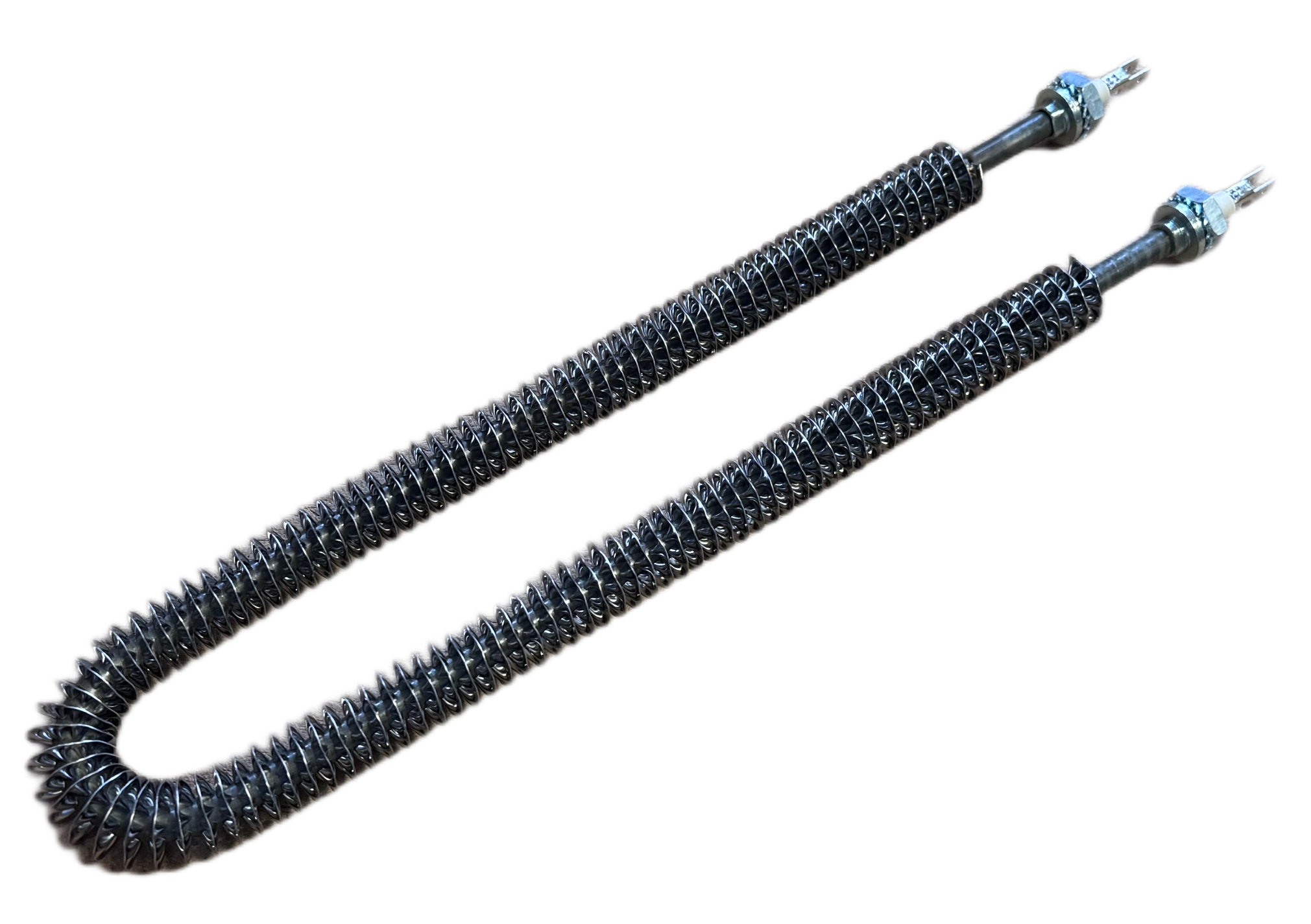

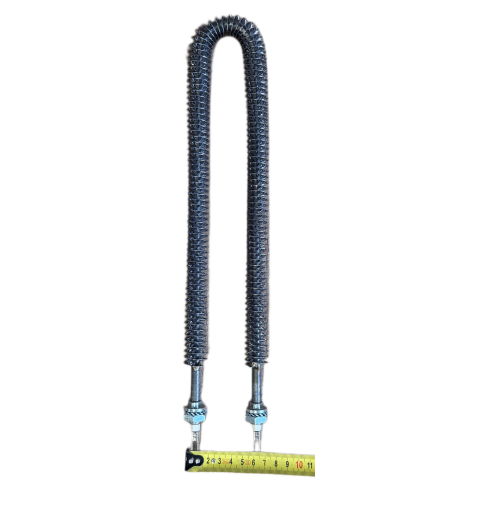

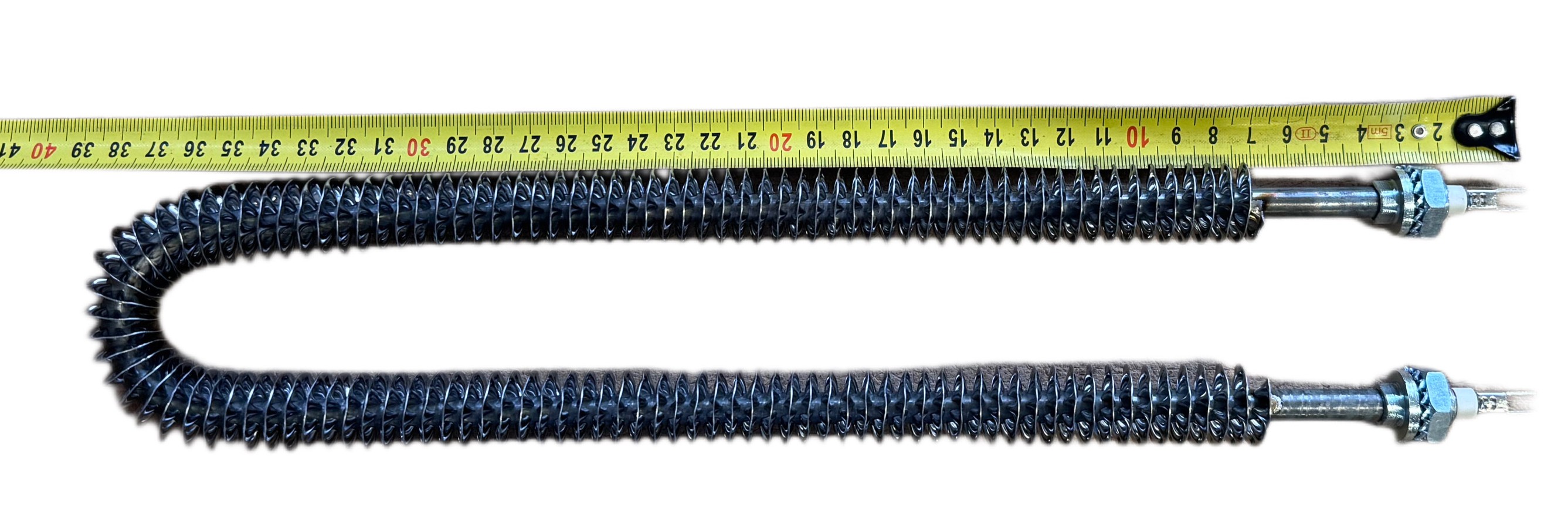

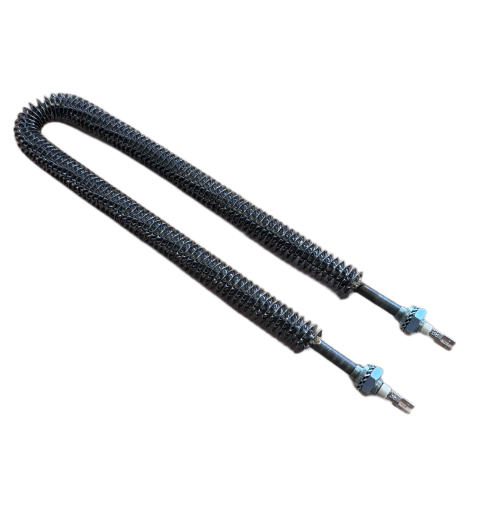

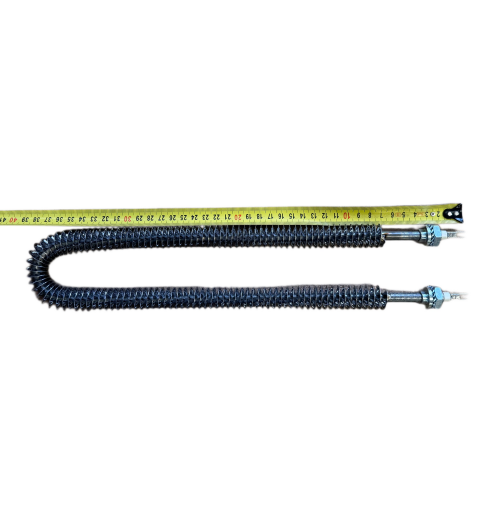

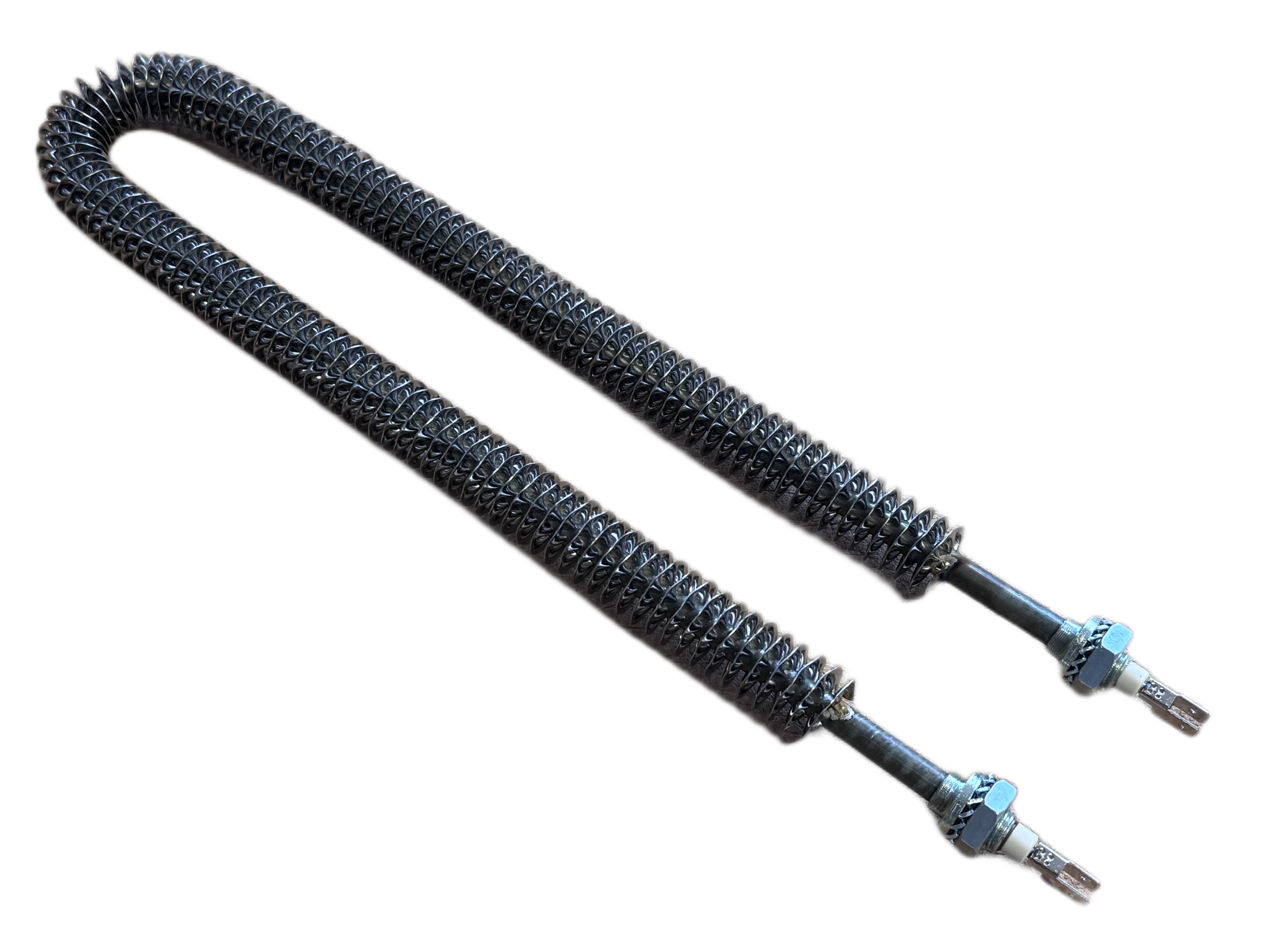

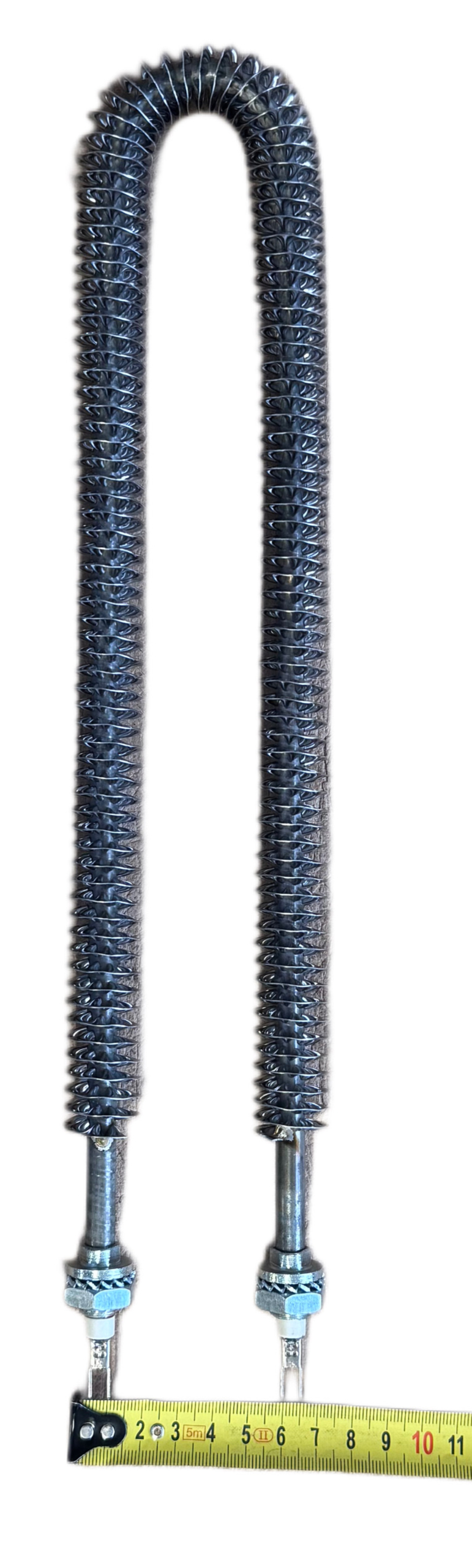

Finned Heating Element for Vents VUT PE EC: Maximum Heat Dissipation
The electric heater is a key component of the Vents VUT PE EC air handling unit, responsible for maintaining comfort in your home during severe frosts. When the heat recovery capacity is insufficient to warm the air to the set point, the heating block is activated. The defining feature of this element is its finned design, which radically enhances the overall efficiency of the ventilation system.

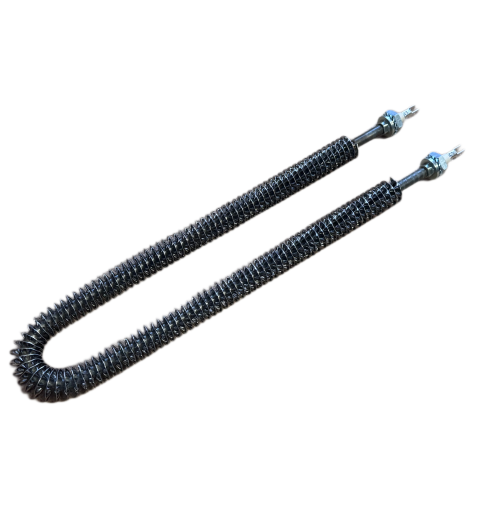

Finning Technology and Its Benefits The finned heating element is manufactured by winding a specialized steel strip onto the primary heating tube. This engineering solution achieves impressive results:
Increased Heat Exchange Surface: Fining increases the effective contact area with the airflow several times over. This allows the heater to transfer significantly more heat within a compact physical footprint, perfectly suited for the unit's internal space.
Lower Surface Temperature: The large heat dissipation area allows the heating element itself to operate at a lower sheath temperature. This not only extends the metal's lifespan but also prevents oxygen "combustion" and dust burning, positively impacting the indoor air quality.
Effective Turbulence: The fins create additional micro-vortices in the airflow, promoting more uniform air mixing and heating across the entire cross-section of the unit's duct.
Reliability and Integration The heating block is made of heat-resistant stainless steel, resistant to corrosion and thermal deformation. For safe operation, the element is integrated into the Vents VUT PE EC general control system. The automation provides multi-level overheat protection, instantly cutting power in the event of fan failure or a critical temperature rise in the heating zone.
Using an original finned heating element ensures that the system's design aerodynamic characteristics are maintained, which is critical for the correct operation of energy-efficient EC motors.
